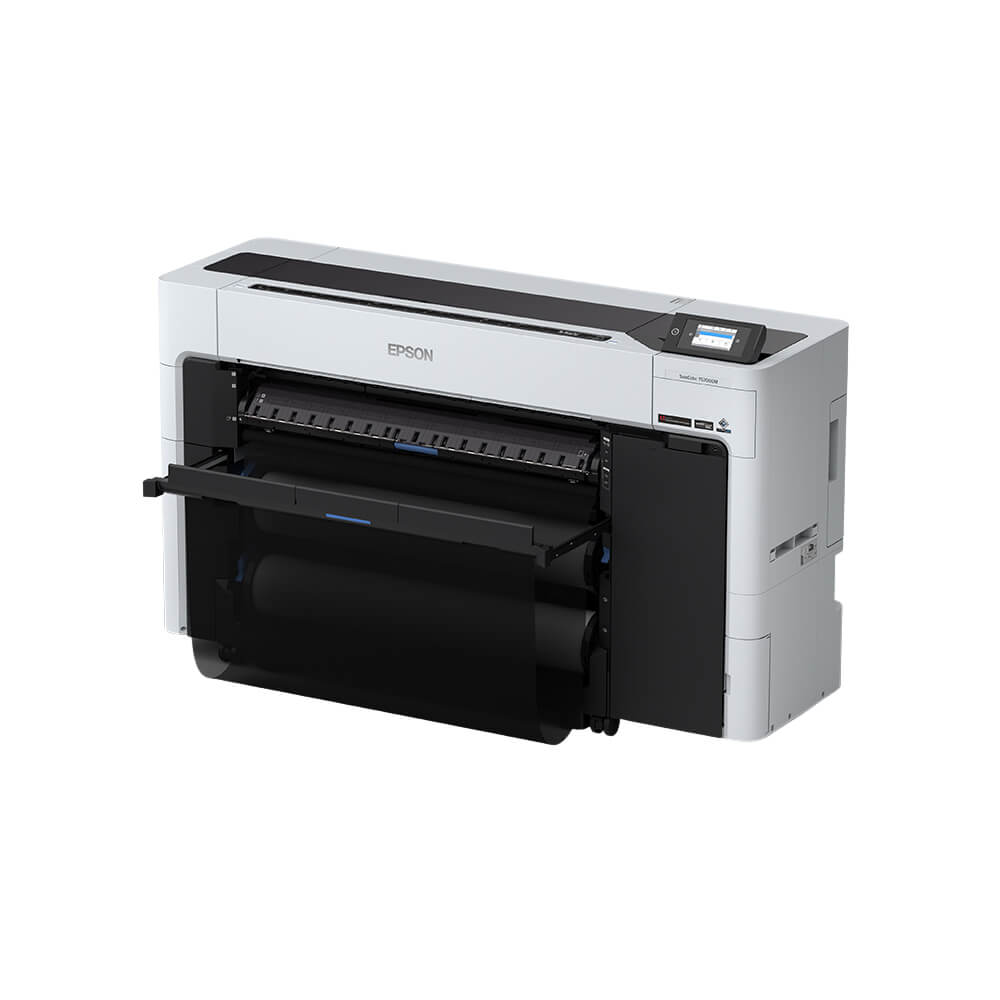

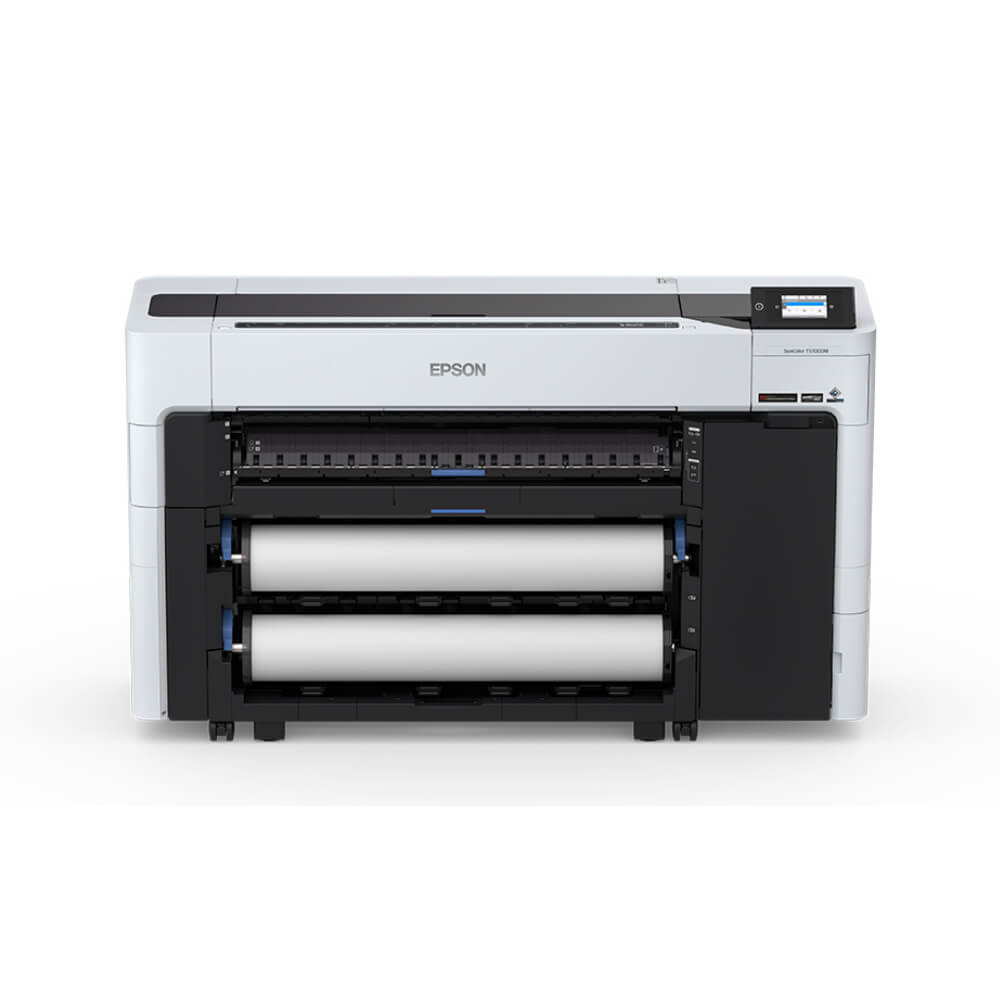

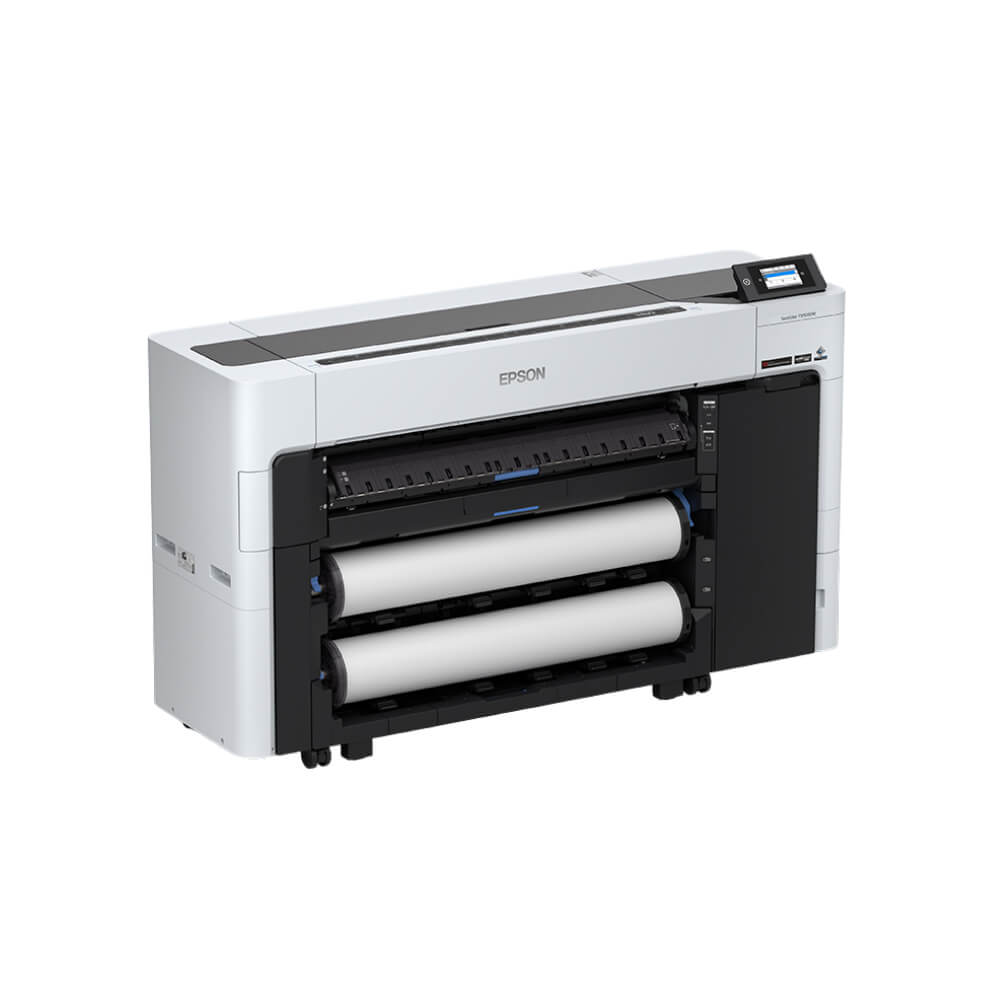

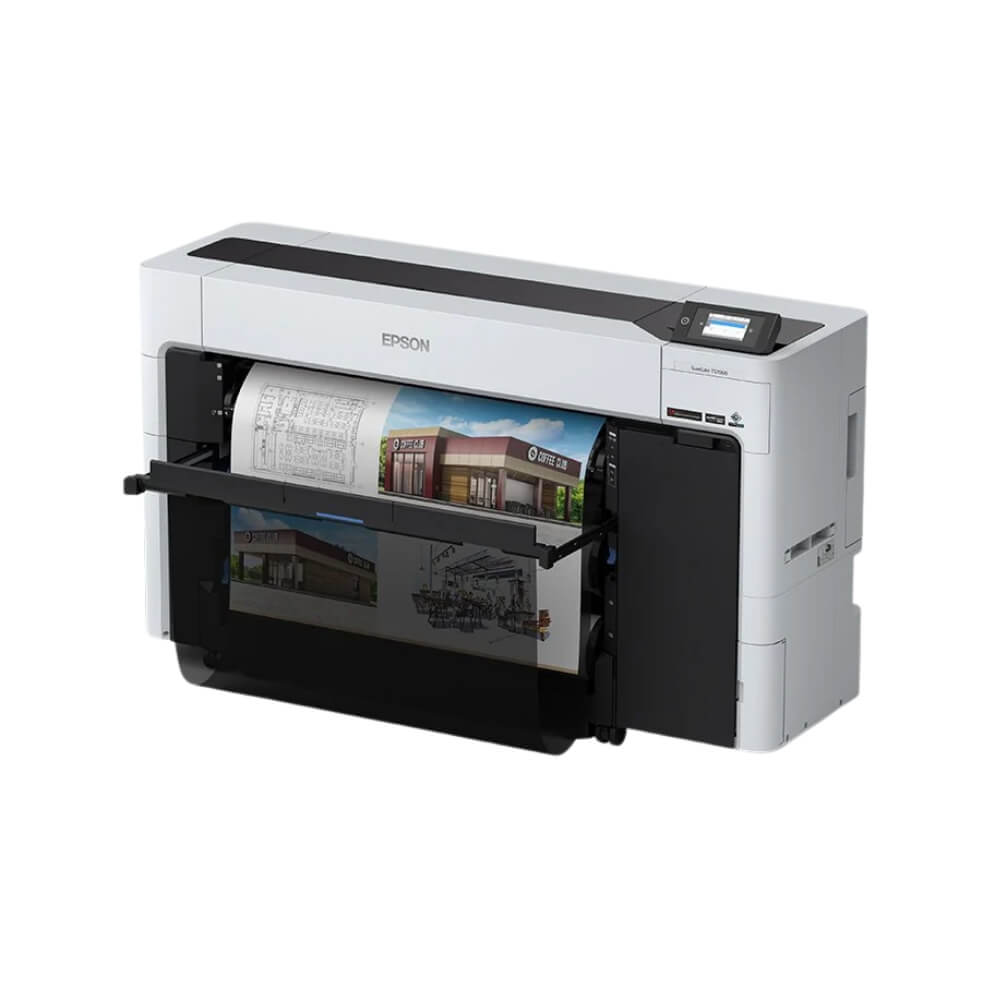

Epson SureColor SC-T5730DM Multifunction Printer
The Epson SureColor SC-T5730DM is a high-productivity, 36-inch dual-roll multi-function technical printer equipped with an integrated large-format scanner, built for enterprise-level CAD, GIS, and POS printing.
Key Specifications
- Printing Performance: Delivers A1 CAD prints in 16 seconds and A0 prints in 28 seconds. Uses a 2.64-inch PrecisionCore MicroTFP printhead (9,600 nozzles: 1,600 nozzles \times 6 channels) with resolutions up to 2400 \times 1200\text{ dpi} and a minimum droplet size of 3.5 pl.
- 6-Color Ink System: Uses UltraChrome XD3 pigment ink (Cyan, Magenta, Yellow, Red, Matte Black, Photo Black) for expanded color gamut and vivid, accurate technical prints.
- Ink Capacities: Cartridges available in 110 ml, 350 ml, and high-yield 700 ml sizes.
- Dual-Roll & Media Handling:
- Supports 36-inch width dual rolls (254\text{ mm} to 914\text{ mm}) with automatic media loading, switching, and continuous take-up reel capability.
- Media thickness handling up to 1.5 mm poster board.
- Integrated Scanning & Copying:
- Light Source & Resolution: Dual LED light source with an optical resolution of 600 dpi.
- Scan Speed (200dpi): 4.5 ips (Color) / 10 ips (Mono) with a maximum document length of 30.5 meters.
- Scan Destinations: Scan to Network Folder, FTP, Email, Memory Device, and directly to Computer/Cloud via Document Capture Pro.
- Copy Functions: Scaling from 25% to 400% up to 99 copies.
- Security & Storage: Features a self-encrypting 960GB SSD (AES-256 protected with TPM chip) for secured PC-less print queue holding and batch operations.
- Design & Control: Compact flat-top design with full frontal operation and a 4.3-inch touch screen panel.
- Connectivity & Processing: USB 3.0, Gigabit Ethernet, Wi-Fi, Apple AirPrint, and optional embedded Adobe PostScript 3 engine.
- Dimensions & Weight: 1645 \times 526 \times 970\text{ mm} (W \times D \times H), weighing approximately 157 kg. Operating power consumption is ~70W.
Target Applications
- High-Volume Enterprise AEC & GIS: Rapid output of high-resolution line drawings, maps, and blueprints with non-stop dual-roll switching.
- Secured Centralized Workgroups: Enterprise environments needing hardware encryption, user authentication, and centralized fleet management tools.
