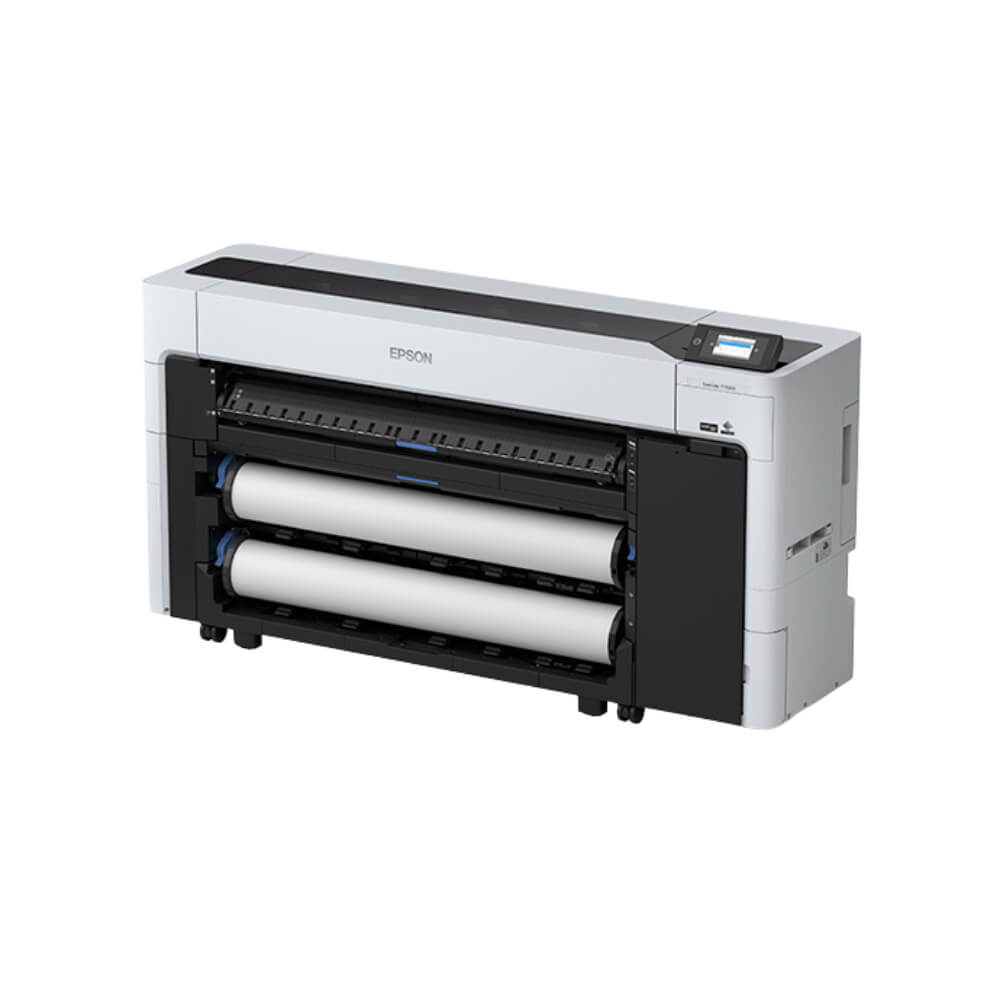

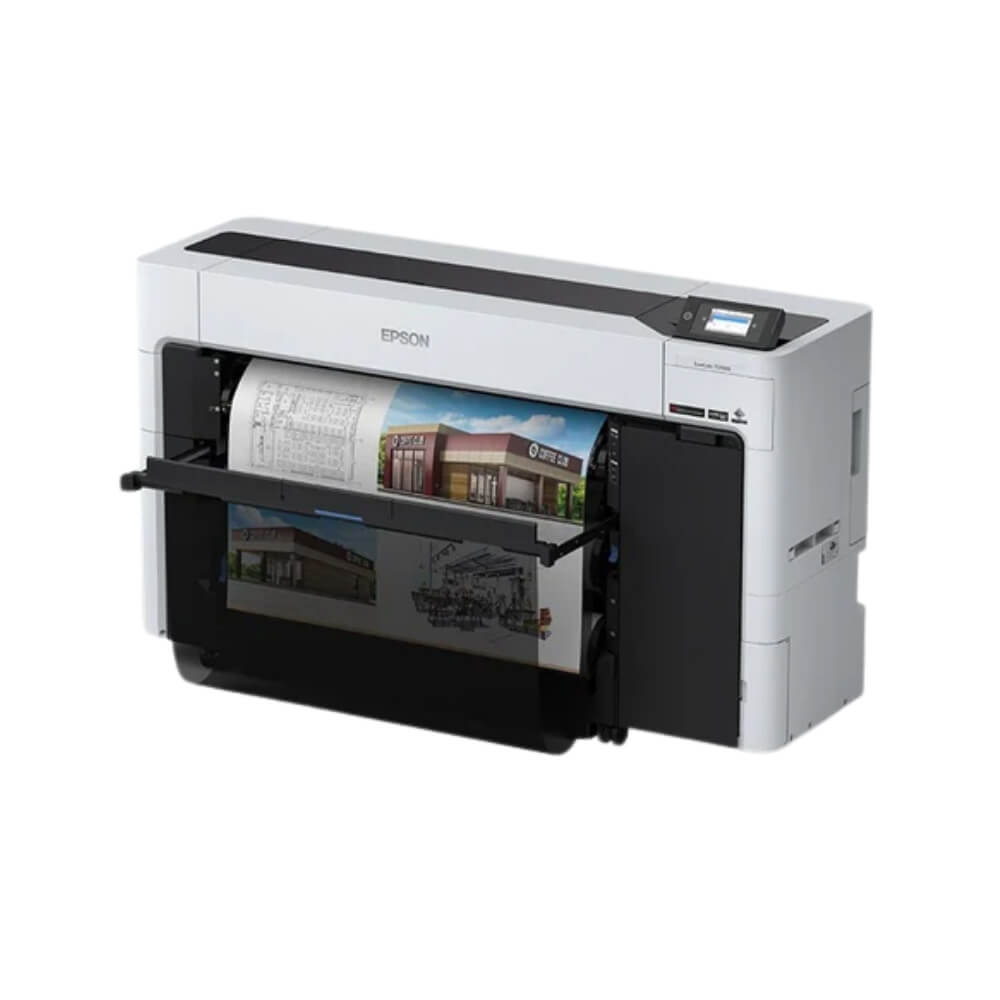

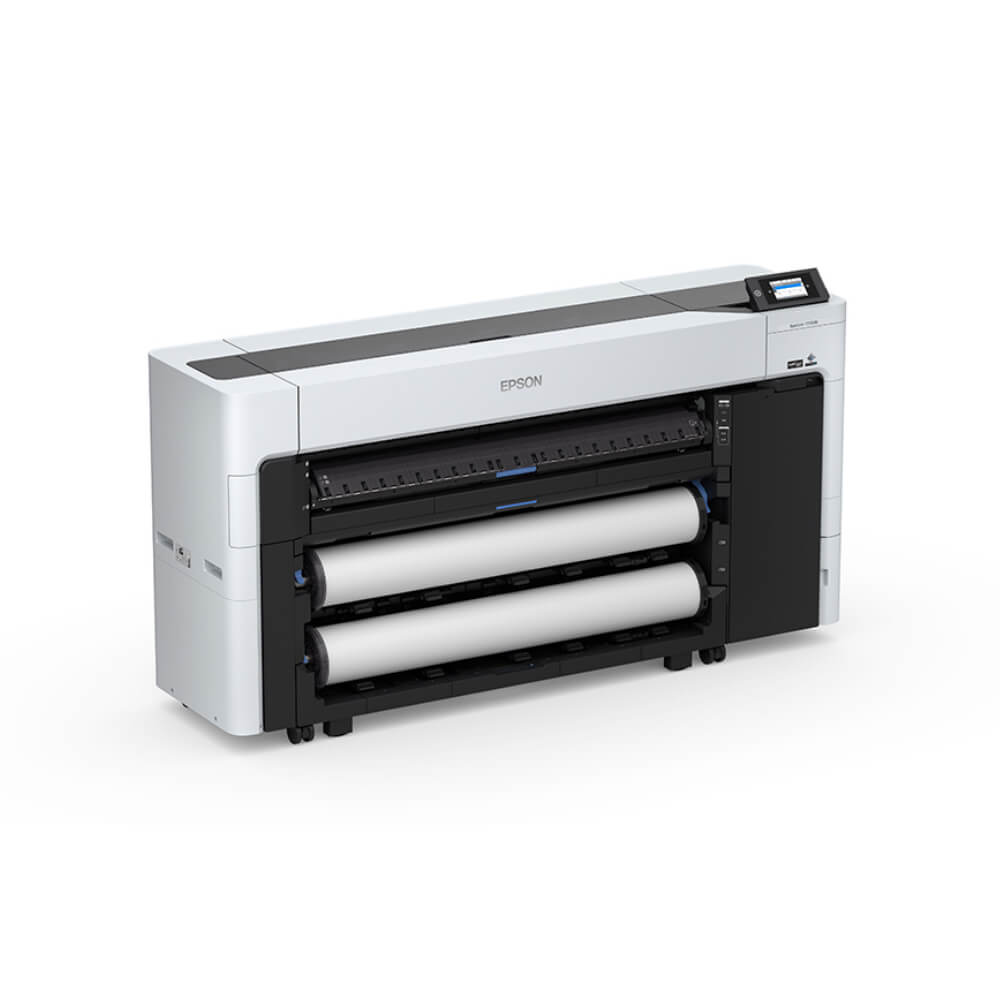

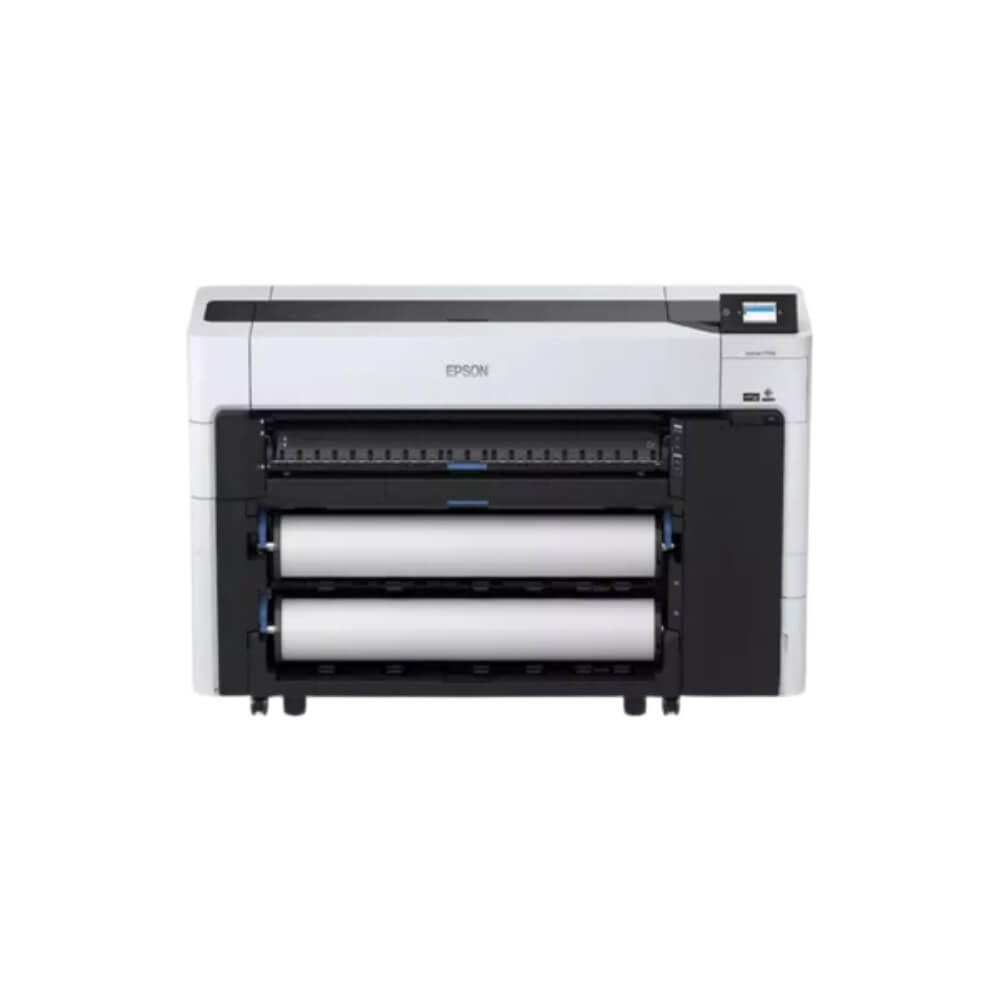

Epson SureColor SC-T7730D
The Epson SureColor SC-T7730D is a high-speed, 44-inch dual-roll technical printer built for high-volume enterprise production, secure data handling, and precise CAD/GIS printing.
Key Specifications
- Printing Performance: Delivers A1 CAD prints in 16 seconds and A0 prints in 28 seconds. Powered by a 2.64-inch PrecisionCore MicroTFP printhead (9,600 nozzles: 400 nozzles \times 24 channels) with resolutions up to 2400 \times 1200\text{ dpi} and a minimum droplet size of 3.5 pl.
- 6-Color Ink System: Uses UltraChrome XD3 pigment ink (Cyan, Magenta, Yellow, Red, Matte Black, Photo Black) to enhance color accuracy and vividness, particularly for POP materials and GIS graphics.
- Ink Capacities: Cartridges available in 110 ml, 350 ml, and high-yield 700 ml sizes.
- Dual-Roll & Media Handling:
- Accommodates up to 44-inch media width (rolls: 254 mm to 1118 mm; cut sheets: 203 mm to 1118 mm).
- Features automatic roll loading, automatic switching between media types/sizes, and dual-function roll 2 (use as a feeder or automatic take-up reel).
- Media thickness handling up to 1.5 mm poster board.
- Security & Onboard Storage: Includes a self-encrypting 960GB SSD (AES-256 protected with a TPM chip) for secure print folder storage and password protection.
- Processing & Connectivity: Equipped with an Adobe Embedded Print Engine for fast processing of PDF, PS, EPS, and raster files. Interfaces include Super-Speed USB 3.0, Gigabit Ethernet, Wi-Fi, Wi-Fi Direct, Apple AirPrint, and direct USB host printing.
- Physical & Power Specifications: Measures 1645 \times 499 \times 970\text{ mm} (W \times D \times H), weighing approximately 155 kg. Power consumption is ~70W operating (32W ready, 0.3W standby).
Target Applications
- High-Volume Enterprise AEC & GIS: Rapid production of large-format 44-inch blueprints, schematics, and high-detail maps.
- Corporate & Commercial Production: High-density posters, signage, and technical rendering requiring secure print queue storage and automated media switching.
