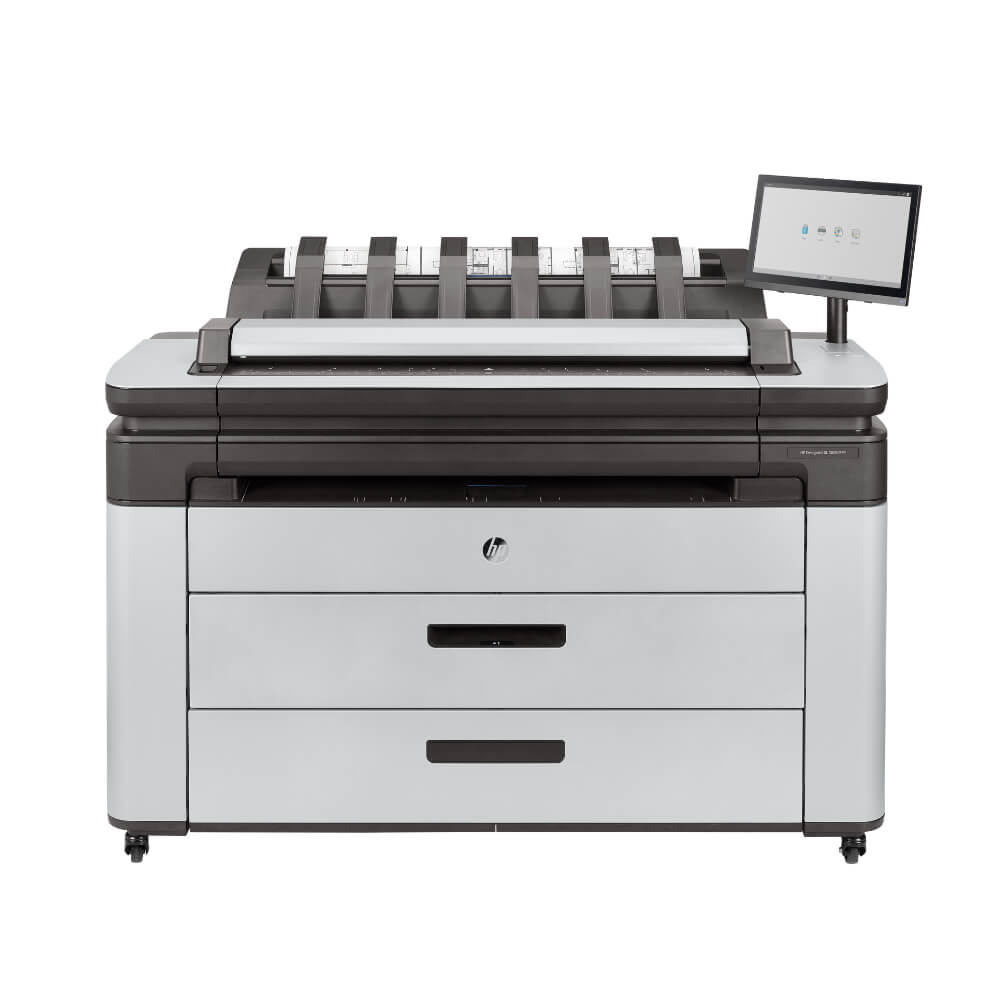

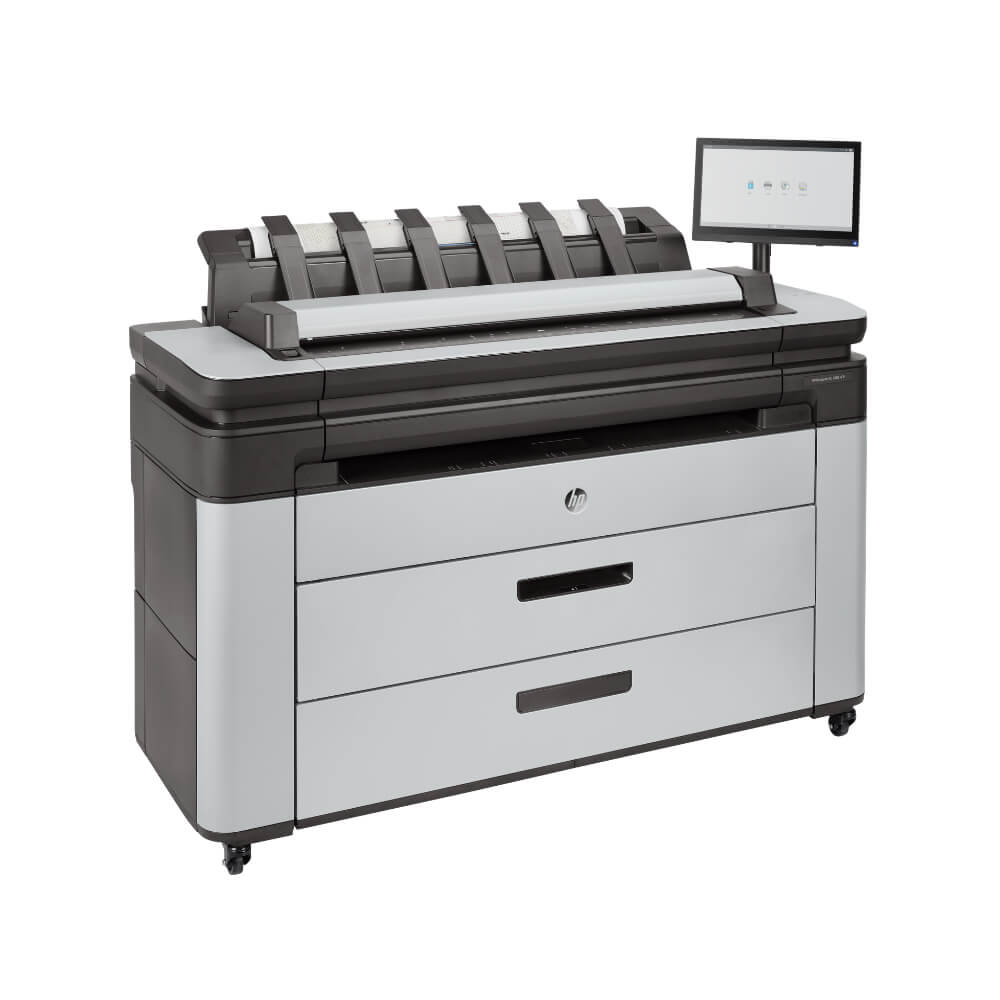

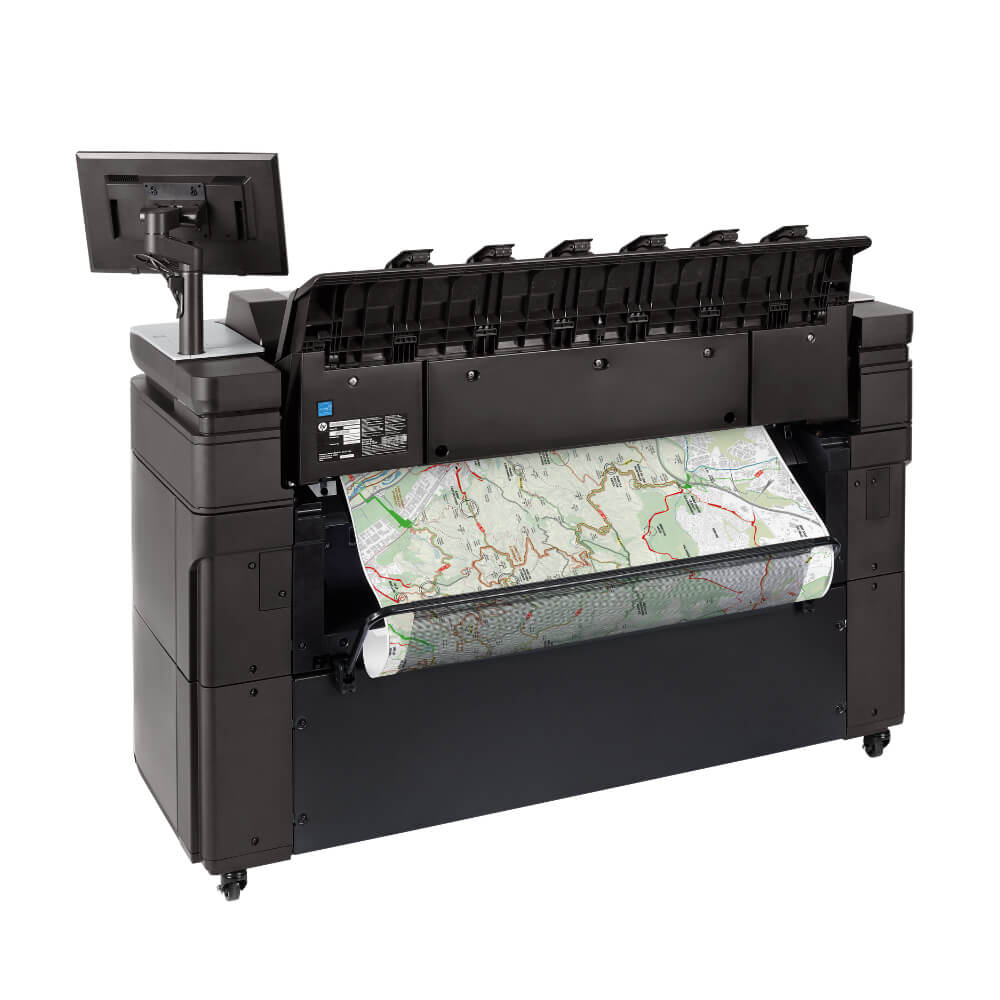

HP DesignJet XL 3600 Multifunction Printer
HP DesignJet XL 3600 Multifunction Printer
The HP DesignJet XL 3600 Multifunction Printer series is a robust, high-volume 36-inch printer designed for demanding CAD, GIS, and technical printing environments.
Key Specifications
- Printing Performance: Delivers print speeds up to 180 D/hr (19.3 sec/D or 3 D/min) with a fast first page out in 29 seconds and print resolution up to 2400 x 1200 optimized dpi.

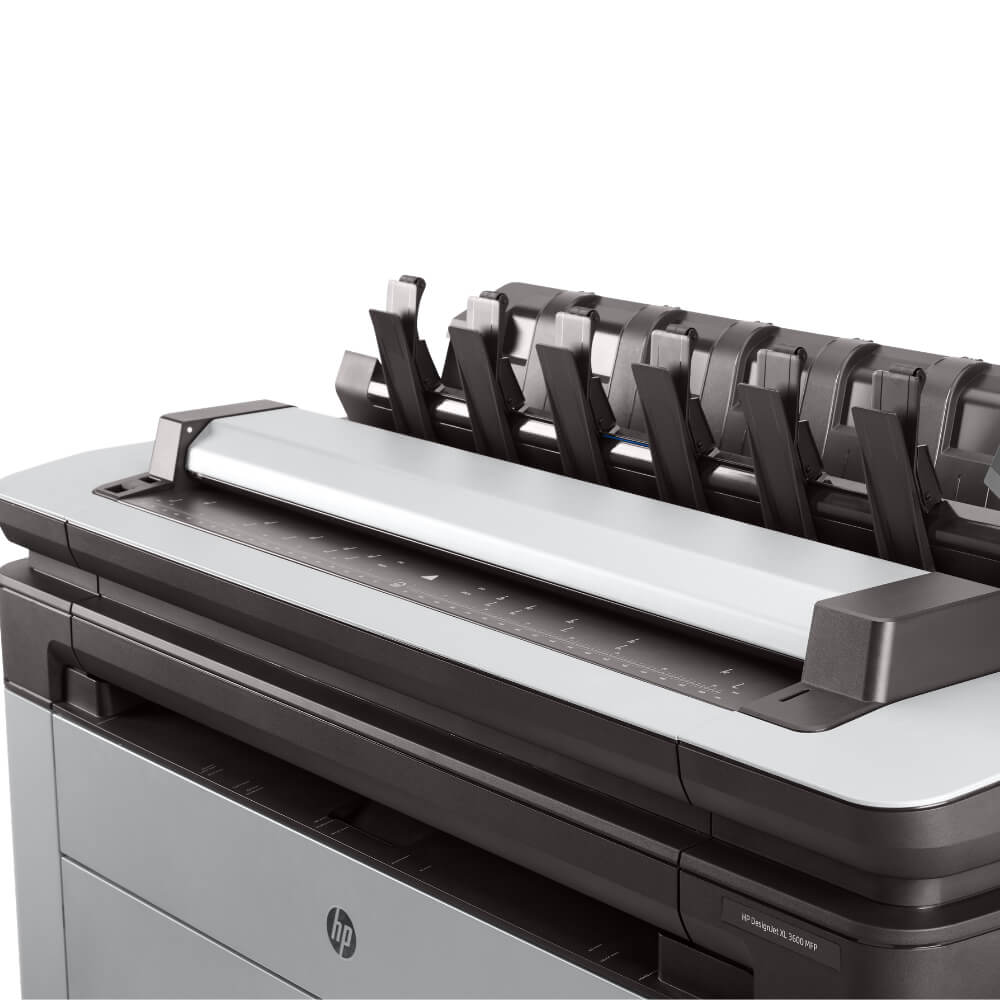

- Scanning & Copying: Features an integrated sheetfed CIS scanner supporting linear scan speeds up to 3 in/sec (color) and 10 in/sec (grayscale) at 200 dpi, with resolutions up to 600 dpi.
- Ink & Printhead System: Uses 6 dye-based and pigment-based inks (C, G, M, pK, MK, Y) supplied in 300 ml cartridges via a single printhead setup.

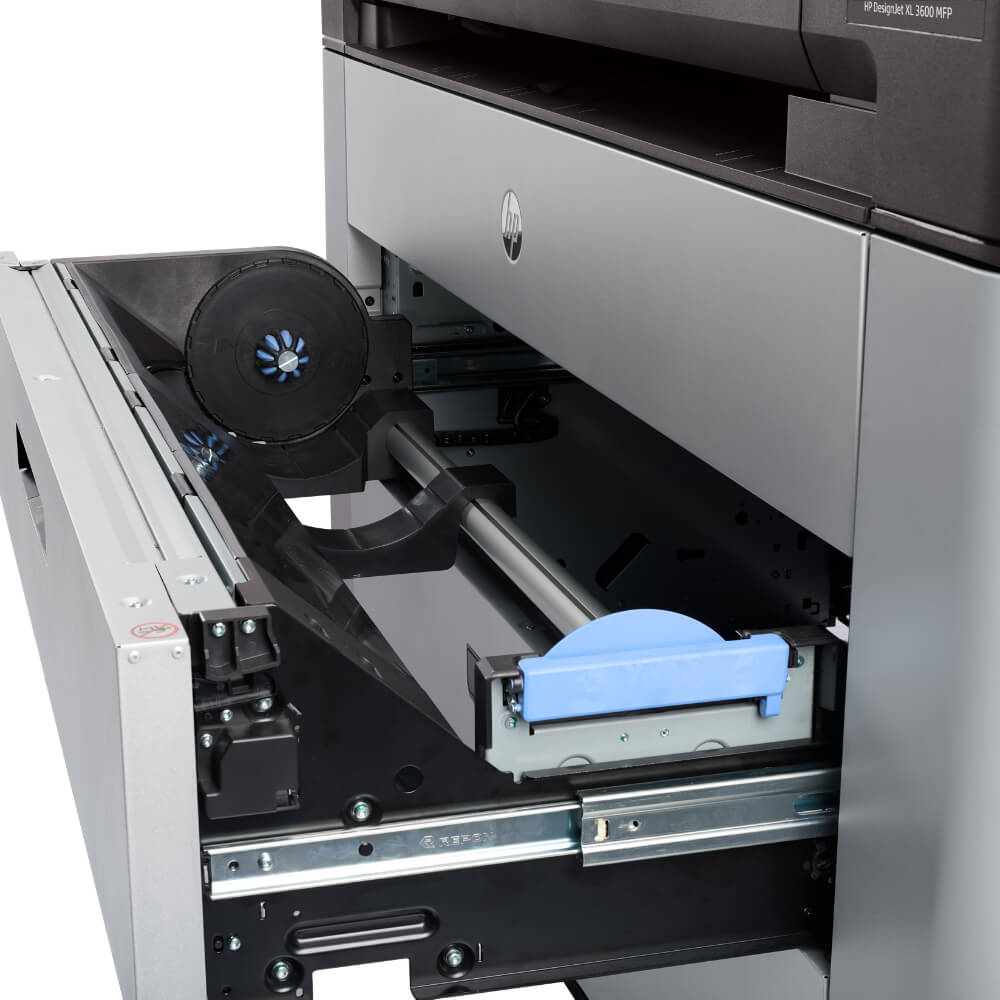

- Media Handling & Stacking: Supports spindle-less automatic loading for up to 2 rolls (11 to 36 inches wide, up to 656 ft length), an integrated output stacker holding up to 100 pages, and an automatic horizontal cutter.
- Interface & Processing: Equipped with a 15.6-inch interactive touchscreen, 128 GB file processing memory, a 500 GB AES-256 encrypted hard disk, Gigabit Ethernet, and optional wireless connectivity.
- Security Suite: Features HP Wolf Pro Security, HP Secure Boot, Allowlisting, Role-Based Access Control, encrypted hard drive, and Secure Disk Erase.
- Physical Dimensions: Measures 59 x 26 x 52 inches (1500 x 660 x 1320 mm) with a Dual-roll Shipping Weigh of 220.0 kg.
Target Applications

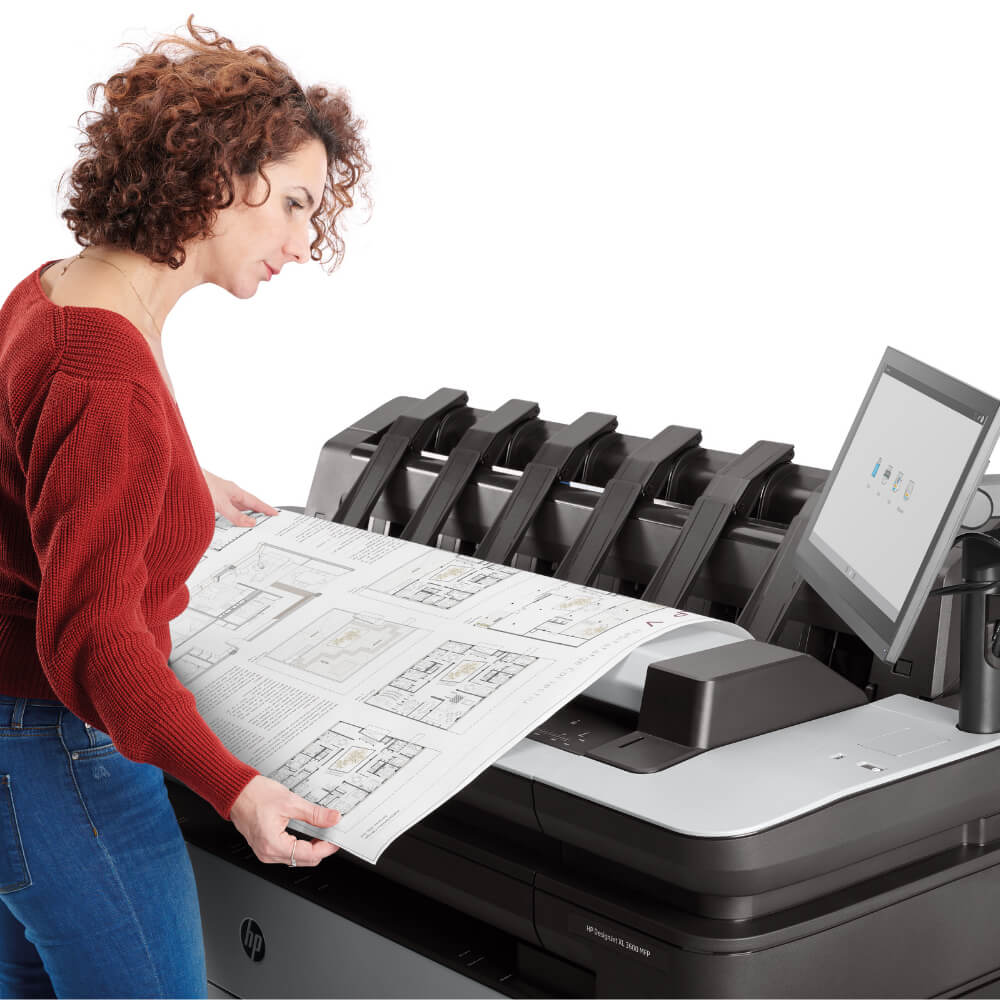

- High-Volume CAD & Construction: Fast output of line drawings, blueprints, and architectural project sets.

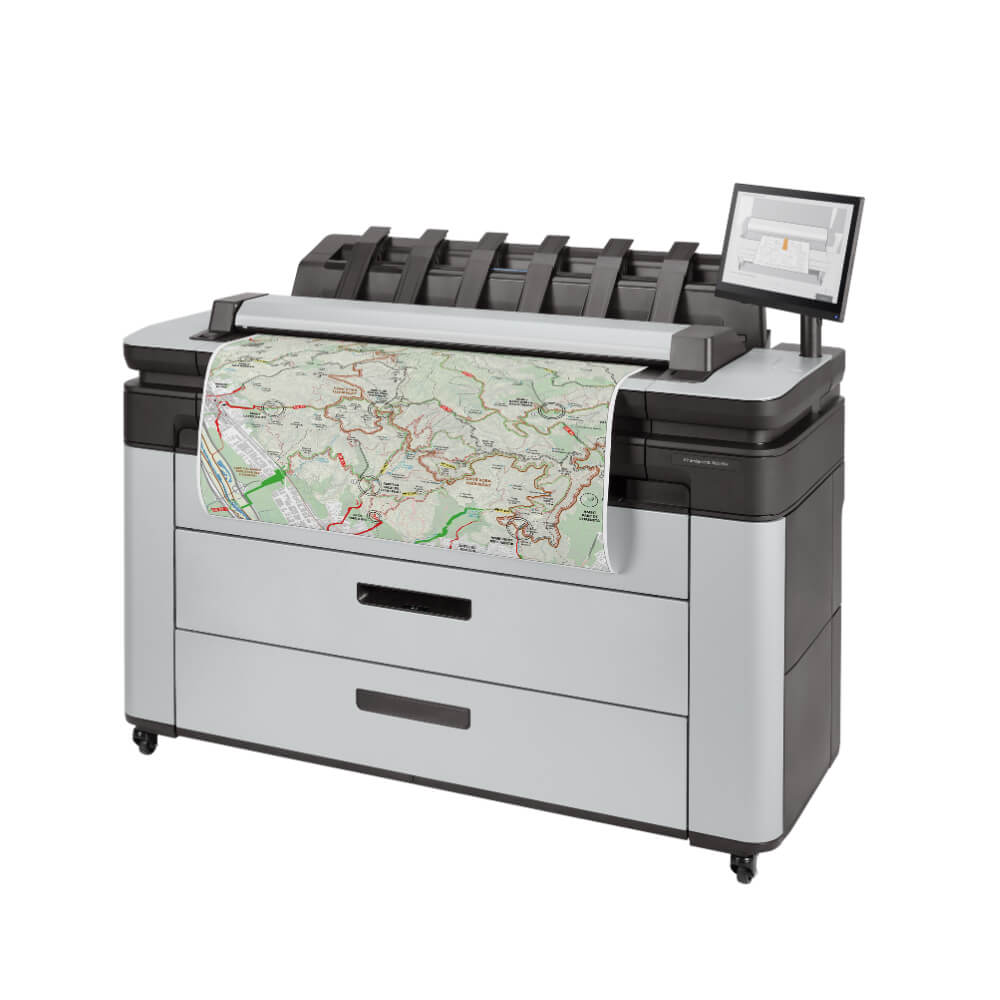

- GIS & Mapping: Detailed orthophotos, topographical overlays, and geographic maps.
- Office Graphics: Technical presentation graphics, posters, and full-color renderings.”
