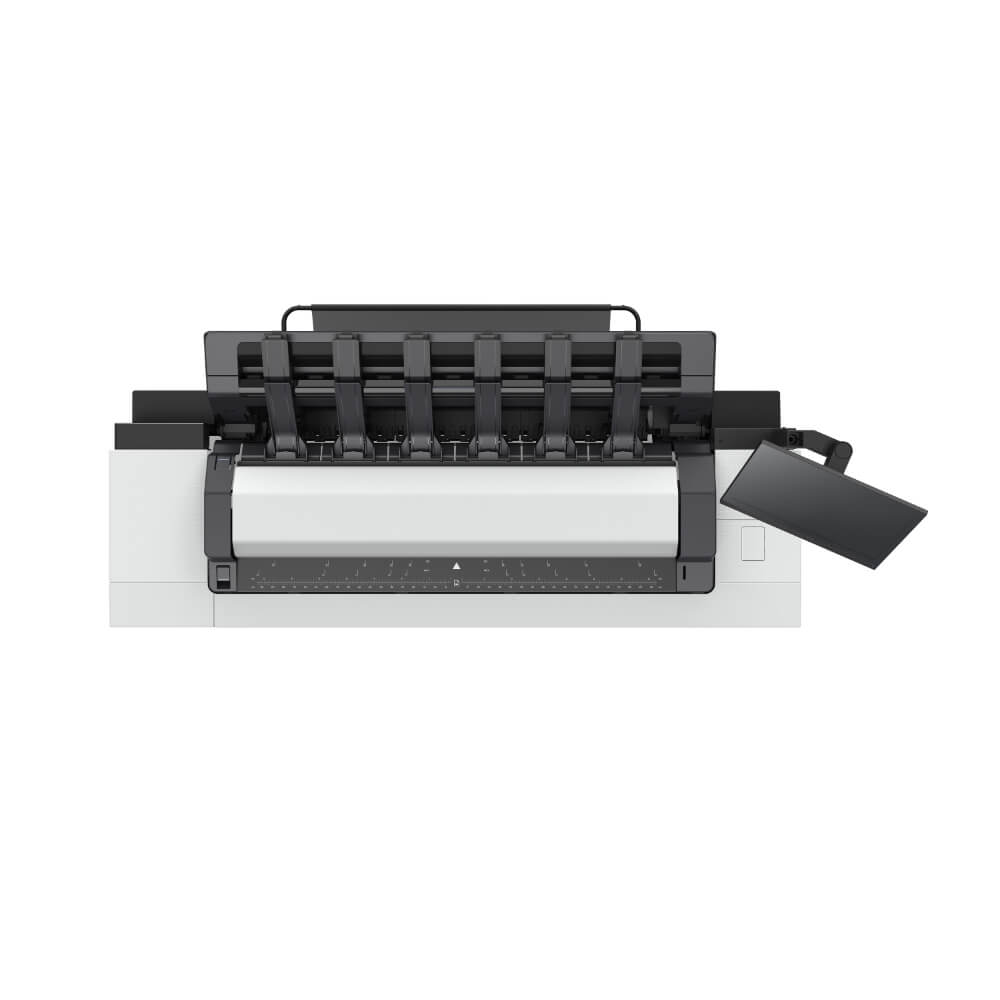

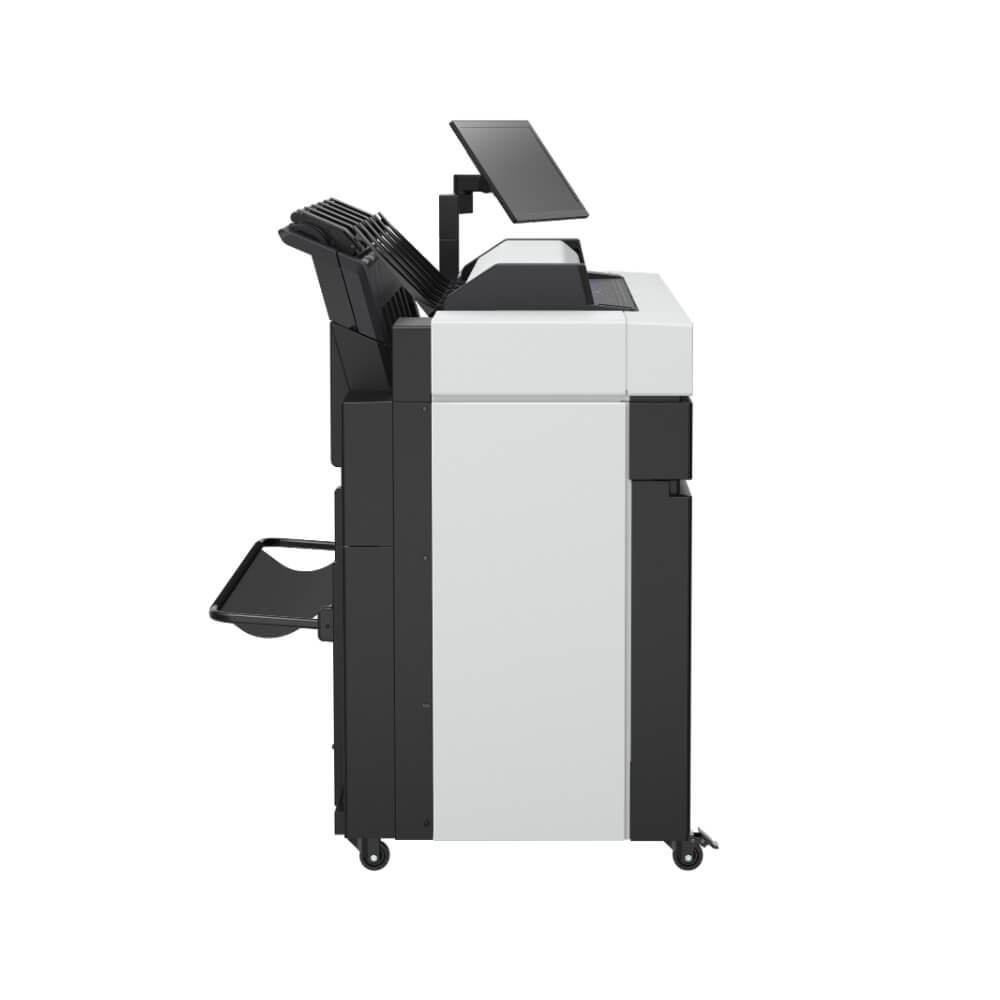

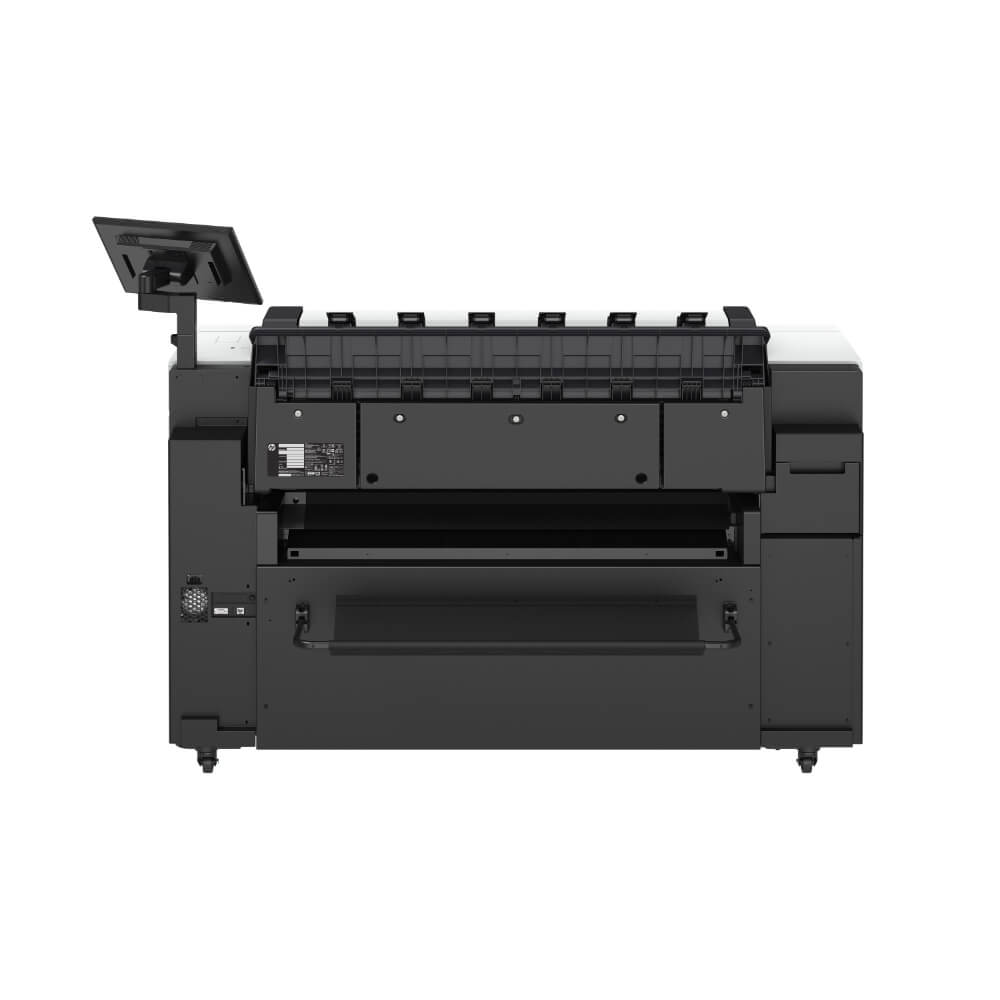

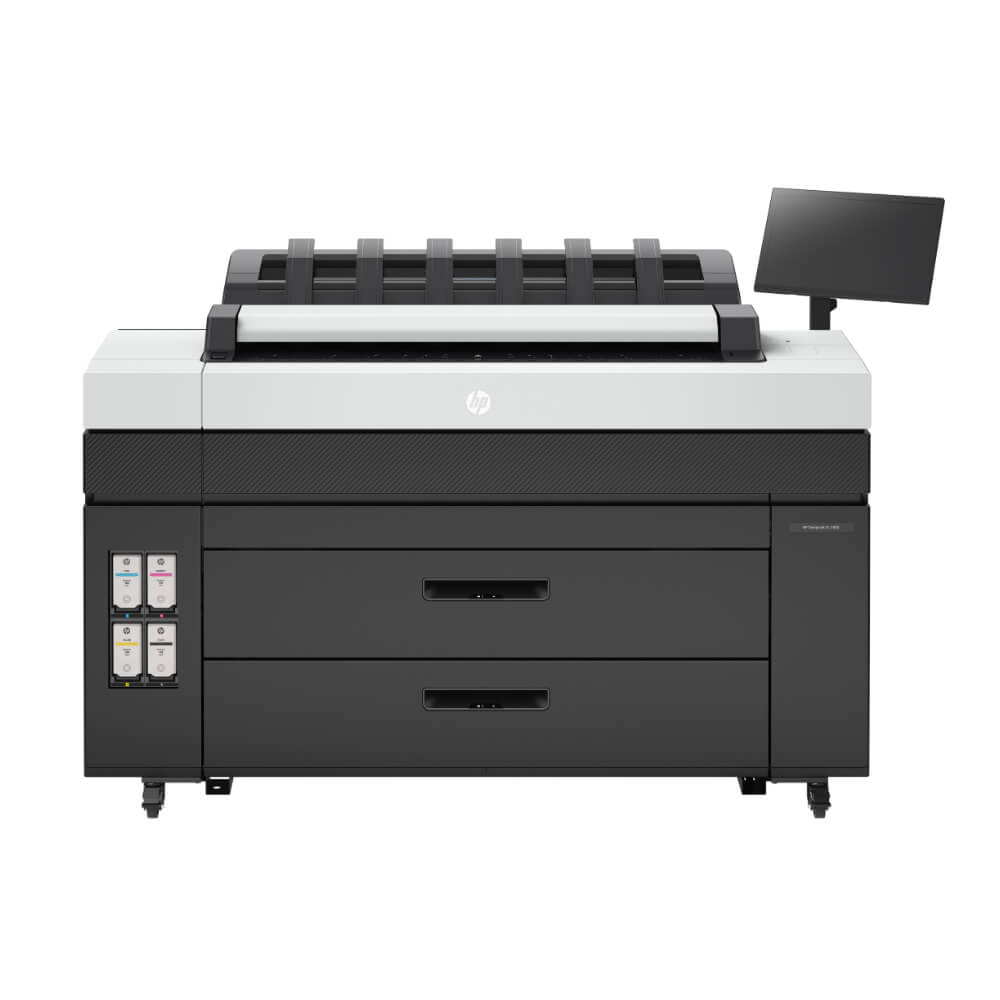

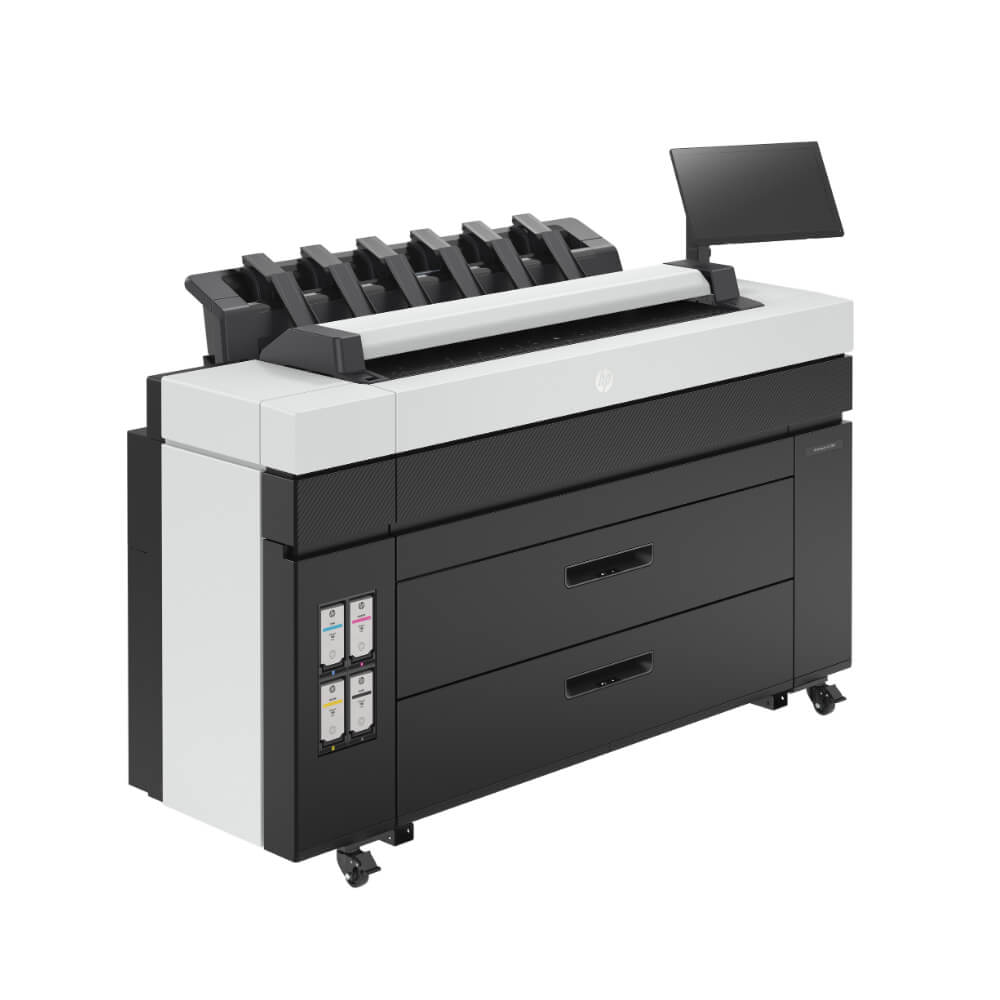

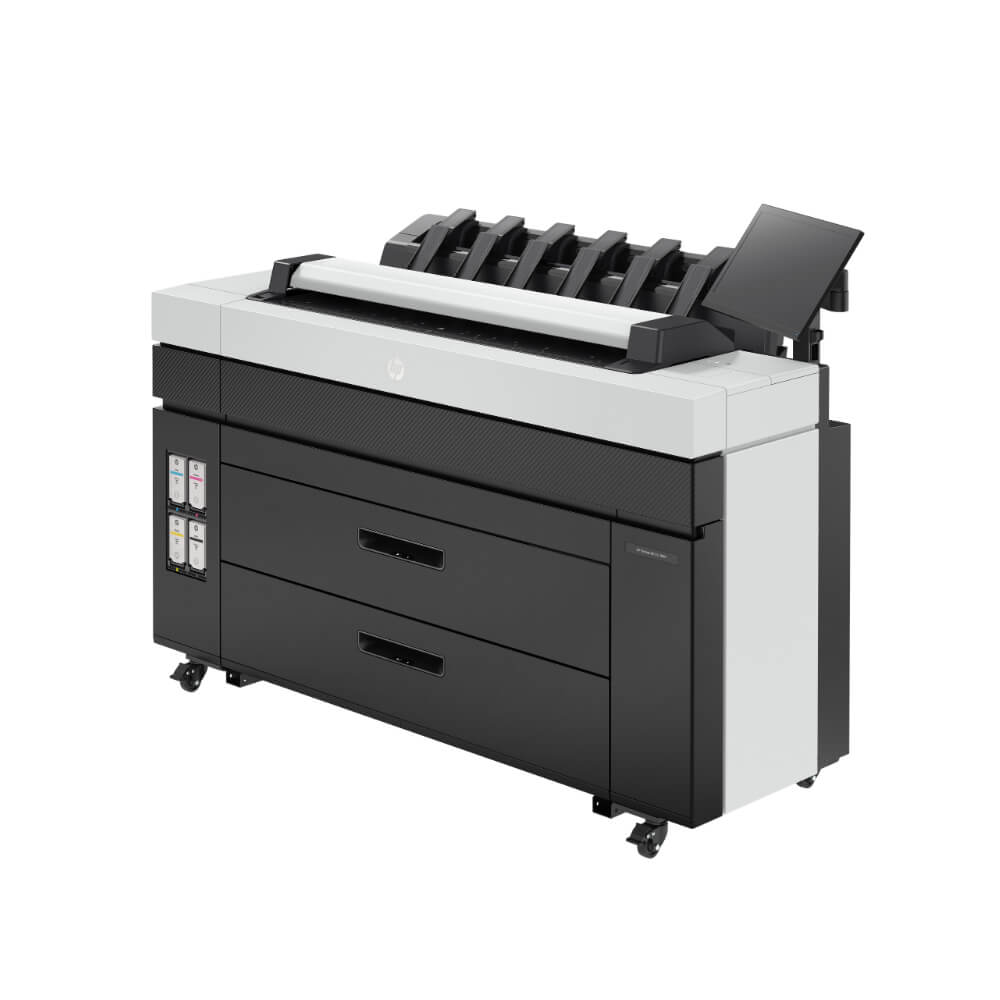

HP DesignJet XL 3800 36-in Multifunction Printer
HP DesignJet XL 3800 36-in Multifunction Printer
Designed for maximum production efficiency, the HP DesignJet XL 3800 MFP offers high-speed color output, advanced scanning/copying, and robust security features in a compact, sustainable design.
Key Specifications
- Printing Performance: Delivers speeds up to 360 A1/hr (10 sec/A1 or 6 A1/min) with a fast first page out in 20 seconds and up to 2400 x 1200 optimized dpi resolution.
- Scanning & Copying: Features a sheetfed CIS scanner with linear scan speeds up to 7.62 cm/sec in color and 25.4 cm/sec in grayscale (at 200 dpi), supporting direct scanning to USB, network folders, and email.
- Ink & Printhead System: Utilizes 4 pigment-based HP Flex Tech Inks (C, M, Y, K) supplied in high-capacity 500 ml cardboard-based cartridges, powered by 6 printheads (2x KM, 2x CY, 2x MK).
- Line Accuracy & Detail: Delivers \pm 0.1\% line accuracy with a minimum line width of 0.02 mm (PDF addressable).
- Media Handling & Stacking: Includes spindle-less drawers for up to 2 rolls (1+1 in 2 drawers, up to 914 mm width and 200 m length), automatic front-loading roll feed, integrated output stacker, automatic horizontal cutter, and straight-through scan path for sheet and cardboard originals.
- Controller & Connectivity: Powered by a 15.6-inch front panel, 128 GB file processing memory, 256 GB AES-256 encrypted SSD, Gigabit Ethernet, and optional Wi-Fi Direct.
- Security Suite: Features HP Wolf Enterprise security, HP SureStart, Secure Boot, Allowlisting, HP Runtime Intrusion Detection, and encrypted PIN printing.
- Dimensions & Weight: Measures 1603 \times 614 \times 1225\text{ mm} (63.1 \times 24.2 \times 48.2\text{ in}) with a printer unit weight of 182 kg (401.2 lb) and shipping weight of 230 kg (507.1 lb).
- Sustainable Design: Constructed with 33% recycled plastic and uses recyclable cardboard-based ink cartridges.
Target Applications
- High-Speed Technical CAD: Fast monochrome and color line drawings, architectural plans, and engineering sets.
- GIS & Spatial Overlays: Detailed maps, orthophotos, and geographical presentation graphics.
- Production Graphic Signage: Renderings, posters, self-adhesive prints, and banner/signage applications.”
